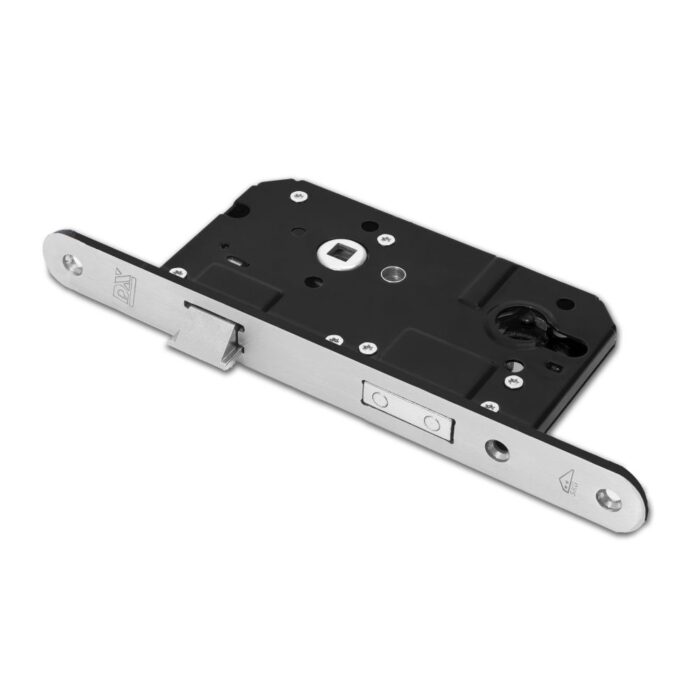

Dulimex Security lock Security mortise lock PC72 SKG**® round stainless steel front plate

Per Unit

34,85

Ordered before 7:00 PM, delivered tomorrow

related products

  • In stock? Ordered before 7:00 PM, delivered the next working day.
  • Free shipping from 99 euros within the Netherlands.
  • Come visit our showroom.
  • Right of return longer than 30 days.
EAN: 8714140219728 Article number: 0160.295.7050

related products

Description

Dulimex Security lock Security mortise lock PC72 SKG**

A new main lock for your front door, back door or shed door? Or replace an existing main lock? With this SKG** approved DX security day and night lock you have the perfect sustainable solution. The dimensions of this mortise lock are fully tailored to the standard milling templates for PC 72 mortise locks. Because the lock is tailored to PC 72 milling jigs, it can be used in both renovation and new construction projects. The lock can be used universally with all EURO profile cylinders and can be used for both left- and right-handed doors. The latch bolt can be turned in three simple steps.

The brushed stainless steel front plate provides an aesthetic solution with a choice of a front plate with straight or round corners. You choose the front plate with round corners if the door is supplied with a lock recess, or if you machine the recess yourself with a speed drill. When you work manually with a hammer and chisel, the front plate with right angles is a better choice.

Please note, these are supplied without striker plate.

application: exterior doors
backset: 50 mm
PC size: 72mm
lock case material: steel painted black
front plate material: stainless steel
front plate dimensions: 238 x 25 x 4 mm
latch material: zamac nickel plated
direction of rotation: reversible latch bolt
deadbolt material: zamac nickel-plated with two steel pins
number of rounds: 1 round
Assembly instructions: included
standard: SKG**®
Dulimex Security lock Security mortise lock PC72 SKG** for quality.
Extra information
Suitable for

Finish/color

Material

Direction of rotation

SKG Standarding SKG (Stichting Quality Facade Building) Test and certifies hinges and locks on burglar-resistance. The SKG classification is indicated by stars. The difference between SKG ** and SKG *** is in the degree of protection: SKG ** must be used in combination with other security material, while SKG *** in itself offers a high level of security. SKG *** offers 2 minutes extra burglary delay compared to SKG **.

Door type

Exterior door

Cabinet Depth

82

Case Thickness

17

Cabinet Height

151

Dimensions Front plate

238×25

Front plate

4

Front plate shape

rounded

Incl. mounting material

Doornmaat De Doornmaat is the distance between the front plate of the lock and the center of the stool hole or the cylinder. This is an important measure in the choice of a new lock or door fittings, because it determines how deep the lock is in the door. How do you measure the thorn size? You measure the thorn size from the front of the lock cupboard (the front plate) to the center of: -the stool hole (at walking locks or cupboard locks) -the cylinder (at cylinder locks) -the square marker of the toilet lock (at toilet locks)

Slot recess

Widely applied in

The Netherlands

Tongue

Mechanical

Certification

SKG

Brand

Collection

Guarantee

Lock type

Security lock

Stift size stool hole

8×8
