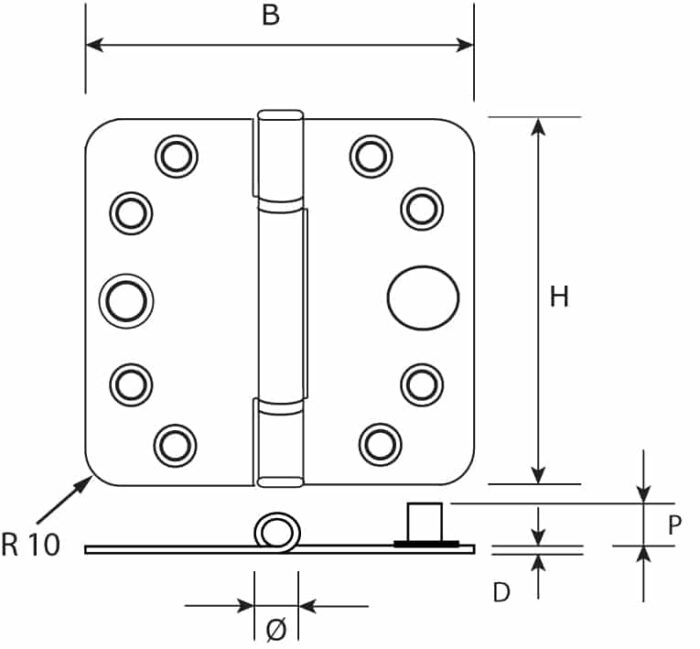

DX – Nylon slide bearing hinge – 3 mm – continuous button – round corners – 89×89 mm – galvanized pin – galvanized steel – SKG***®

Nylon sliding bearing hinge / 3 mm / continuous button / round corners / 89×89 mm / galvanized pin / galvanized steel / SKG***®

With the DX Slide Bearing Hinges, heavy doors can now be hung with fewer hinges, which also last longer. And they look sharp!

Doors are becoming higher and heavier. This places increasing demands on the load-bearing capacity of hinges. The sliding bearing hinge was created from that need.

The sliding bearing hinge has a higher load capacity than other hinges. This makes it suitable for heavier doors. Due to the greater load-bearing capacity, fewer hinges are needed : a door weighing 100 kg can be hung with 2 slide bearing hinges, while 4 are required for ball bearing hinges.
In addition, slide bearing hinges are also free from maintenance and dirt formation .

Slide bearing hinges can also be used in aggravating circumstances such as a door closer or door stop. And can be applied to escape and emergency doors.

Qualities of the DX Slide Bearing Hinge

When developing the DX sliding bearing hinge, the aim was to combine the most important product advantages in one hinge. With an upgrade in design at the same time.

All our slide bearing hinges have the CE mark . This is how they score in load-bearing capacity: hinge class 13 (EN 1935).
They have passed a test with 200,000 revolutions on a 120 kg test door! Thanks to the HPCE coating, the hinges achieved the highest possible score in corrosion resistance: class 4 .
This with a test of 240 hours (EN1670). In addition to excellent product properties, an improvement has also been made in the design of the hinge. The pin head is designed in such a way that this security fits almost seamlessly with the button. This means that the knot and head form a tight whole.

In short: the highest score in load-bearing capacity and corrosion resistance, in one sleekly designed hinge.

Even more benefits

Excelling in load capacity and offering resistance to corrosion make the DX Plain Bearing Hinge a smart choice. Yet there are other important reasons to choose this hinge: This hinge provides a cost advantage .
Due to the increased load capacity, fewer hinges are required, while their durability (wear-resistant and UV-resistant sliding bearings) makes them last longer. In addition, virtually no maintenance is required: the knurled pin does not wear out and the sliding bearings have a self-lubricating effect. There is therefore no dirt formation or damage to the paintwork on doors and window frames.

Variants for different applications Sizes: 80×89 mm for windows and 89×89 mm for doors.
Continuous button design for windows and doors, or double continued button design especially for hinged windows.
Models with or without SKG***Î quality mark . The SKG models have been added to SKH list publication 98-08 Burglar-resistant facade carpentry.
